The banjo bolt is what connects your brake hose fitting to the caliper providing a necessary connection to get the fluid to the brakes where it’s needed. Our brake hose banjo bolts are made from high quality steel and plated for maximum corrosion resistance. Unlike any other site we stock a complete line of standard and metric thread bolts including hard to find configurations.
Click on the part number below to view more details including known vehicles that use each bolt

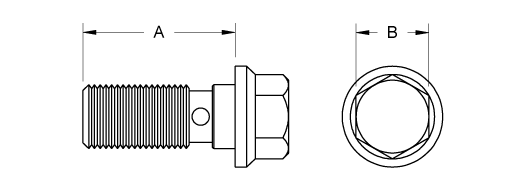

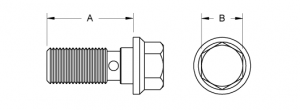

| THREAD | THREAD | HEAD STYLE | A | B |
|---|---|---|---|---|
| BQ8097 | 1/2″ x 20NF | R | 30mm [1-3/16″] | 9/16″ |
| BQ8093 | 3/8″ x 24NF | R | 25mm [1″] | 14mm |
| BQ8093SS | 3/8″ x 24NF | R | 25mm [1″] | 14mm |
| BQ8089 | 7/16″ x 20NF | R | 24mm [15/16″] | 7/16″ |
| BQ8096 | 7/16″ x 20NF | R | 27mm [1-1/16″] | 11mm |
| BQ8090 | 7/16″ x 24NS | R | 27mm [1-1/16″] | 1/2″ |
| BQ8094 | M10 x 1 | R | 26mm [1″] | 14mm |
| BQ8095 | M10 x 1 | R | 22mm [7/8″] | 12mm |
| BQ8095SS | M10 x 1 | R | 22mm [7/8″] | 12mm |
| BQ8099 | M10 x 1.25 | R | 22mm [7/8″] | 12mm |
| BQ8099SS | M10 x 1.25 | R | 22mm [7/8″] | 12mm |
| BQ8075 | M10 x 1.5 | R | 20mm [3/4″] | 12mm |
| BQ8086 | M10 x 1.5 | R | 24mm [15/16″] | 11mm |
| BQ8086SS | M10 x 1.5 | R | 24mm [15/16″] | 11mm |
| BQ8088 | M10 x 1.5 | R | 27mm [1-1/16″] | 10mm |
| BQ8087 | M11 x 1.25 | R | 24mm [15/16″] | 5/8″ |
| BQ8098 | M12 x 1 | R | 21mm [13/16″] | 13mm |
| BQ8078 | M12 x 1.25 | R | 25mm [1″] | 14mm |
| BQ8092 | M12 x 1.5 | R | 25mm [1″] | 14mm |
| BQ8076 | M8 x 1.0 | R | 17mm [11/16″] | 10mm |
| BQ8077 | M8 x 1.25 | R | 16mm [5/8″] | 10mm |
