3-Tee with Mount Hole 3/8 x 24NF Stainless Steel
Product Description

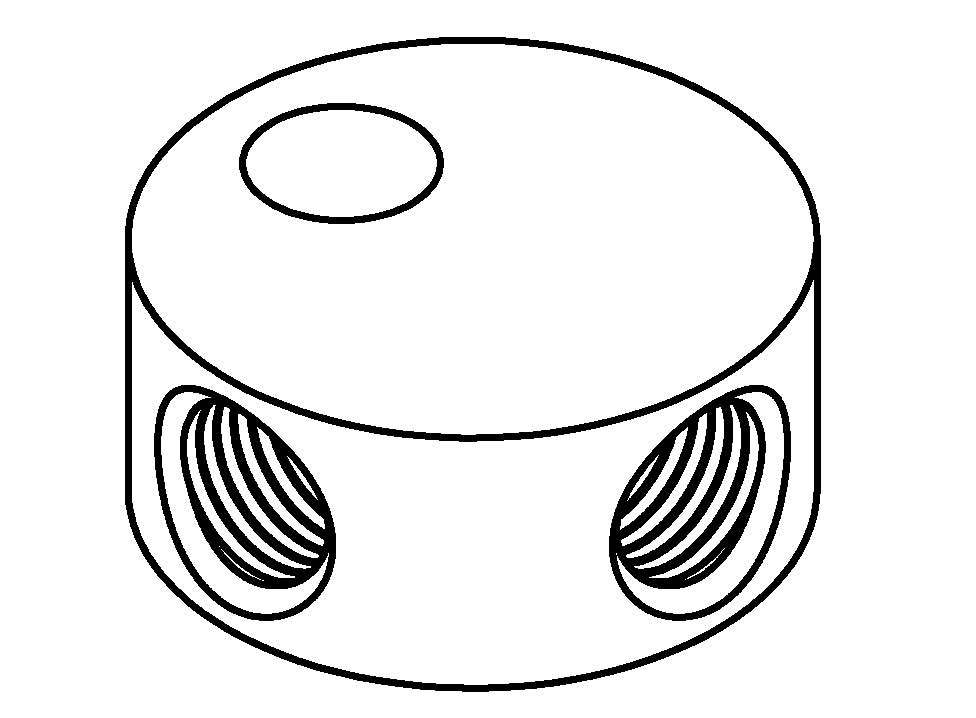

3 way tube tee in stainless steel. This tee is used to connect 3 lines together and includes a 5/16 hole to bolt it in place. Each of the 3 ports are threaded 3/8 x 24 and are what we call “inverted” seat. This means that your connecting lines are flared out and open like a cone to fit onto the port.
Other Tube Tees
| PART NO. | THREAD | SEAT TYPE | Diameter/Width | Thickness | Center To Mount | Mount Size |
|---|---|---|---|---|---|---|
| BQ56A | 3/8″ x 24NF | Inverted | 28mm | 1/2″ | 7.70mm | 5/16″ |
| BQ56ASS | 3/8″ x 24NF | Inverted | 28mm | 1/2″ | 7.70mm | 5/16″ |
| BQ90A | 3/8″ x 24NF | Drill Point | 1-1/4″ | 1/2″ | 9.00mm | 5/16″ |
| BQ91A | M10 x 1 | Inverted | 1-1/4″ | 1/2″ | 9.00mm | 8mm |
| BQ92A | 7/16″ x 24NS | Inverted | 1-1/4″ | 14mm | 9.00mm | 5/16″ |
| BQ93A | 1/8″ x 27NPT | Drill Point | 26mm | 1/2″ | 10.75mm | 5/16″ |
| BQ95A | M10 x 1 | Drill Point | 1-1/4″ | 14mm | 10.00mm | 7mm |
Additional Information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 1.5 × 0.5 × 0.5 in |
