Home / Brake Line Joiners / 3 Way TubeTee 3/8 x 24 Thread

3 Way TubeTee 3/8 x 24 Thread

SKU: BQ56A Category: Brake Line Joiners
  • Description
  • Additional information
  • Product Inquiry

Product Description

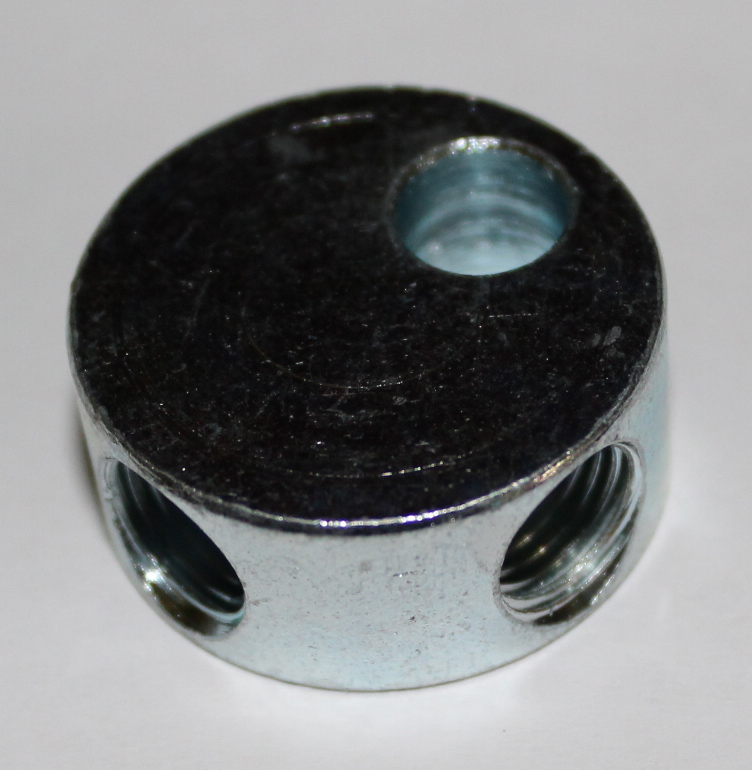

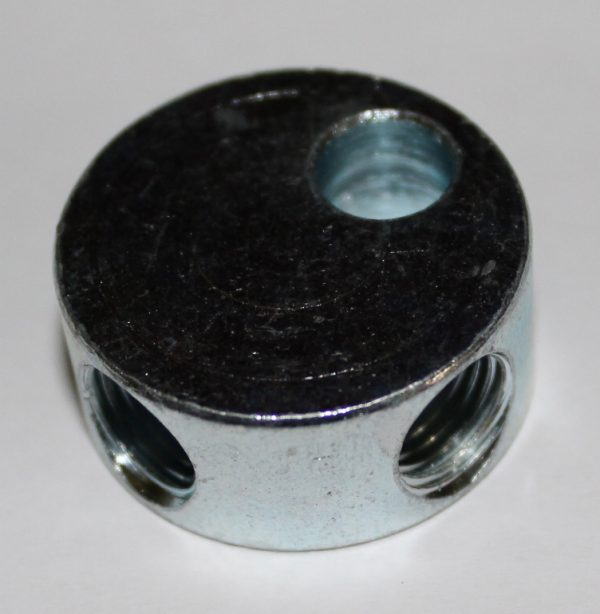

3 Way tube tee commonly found on the rear of your vehicle. This tee is threaded 3/8 x 24 in 3 ports with a 5/16″ mounting hole to bolt it in place. The seat type is what we call “inverted” which means that your connecting line should be flared out (the end of the tube opens in a cone).

Other Tube Tees

PART NO. THREAD SEAT TYPE Diameter/Width Thickness Center To Mount Mount Size
BQ56A 3/8″ x 24NF Inverted 28mm 1/2″ 7.70mm 5/16″
BQ56ASS 3/8″ x 24NF Inverted 28mm 1/2″ 7.70mm 5/16″
BQ90A 3/8″ x 24NF Drill Point 1-1/4″ 1/2″ 9.00mm 5/16″
BQ91A M10 x 1 Inverted 1-1/4″ 1/2″ 9.00mm 8mm
BQ92A 7/16″ x 24NS Inverted 1-1/4″ 14mm 9.00mm 5/16″
BQ93A 1/8″ x 27NPT Drill Point 26mm 1/2″ 10.75mm 5/16″
BQ95A M10 x 1 Drill Point 1-1/4″ 14mm 10.00mm 7mm

Additional Information

Weight 0.1 lbs
Dimensions 1.5 × 0.5 × 0.5 in

$8.71

In stock
